Specifications:
General
- Platform Technology: Intel vPro Technology
- Type: PC
- Product Form Factor: Mini PC
- Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip
Processor / Chipset
- CPU: Intel Core i7 (8th Gen) 8650U / 1.9 GHz
- Max Turbo Speed: 4.2 GHz
- Number of Cores: Quad-Core
- CPU Qty: 1
- Max CPU Qty: 1
- Processor Main Features: Intel Virtualization Technology, Intel Trusted Execution Technology, Intel AES New Instructions
Cache Memory
- Installed Size: L3 cache – 8 MB
- Cache Per Processor: 8 MB
RAM
- Installed Size: 32 GB
- Technology: DDR4 SDRAM
- Form Factor: SO-DIMM 260-pin
- Features: Dual channel memory architecture
Hard Drive
- Type: 2TB M.2 or PCIe SSD
Storage Controller
- Type: 2 x SATA
- Controller Interface Type: SATA 6Gb/s
Monitor
- Monitor Type: None.
Graphics Controller
- Graphics Processor: Intel UHD Graphics 620
- Video Interfaces: HDMI, DisplayPort
Audio Output
- Sound Output Mode: 7.1 channel surround
- Compliant Standards: High Definition Audio
Networking
- Ethernet Controller: Intel I219-LM
- Wireless LAN Supported: Yes Can be disabled
- Wireless NIC: Intel Dual Band Wireless-AC 8265 Can be disabled
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2
- Compliant Standards: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2
Expansion / Connectivity
- Bays: 1 (total) / 1 (free) x internal 2.5″
- Slots: 1 M.2 Card – 2230 (Key E) ¦ 1 M.2 Card – 2280 (Key M)

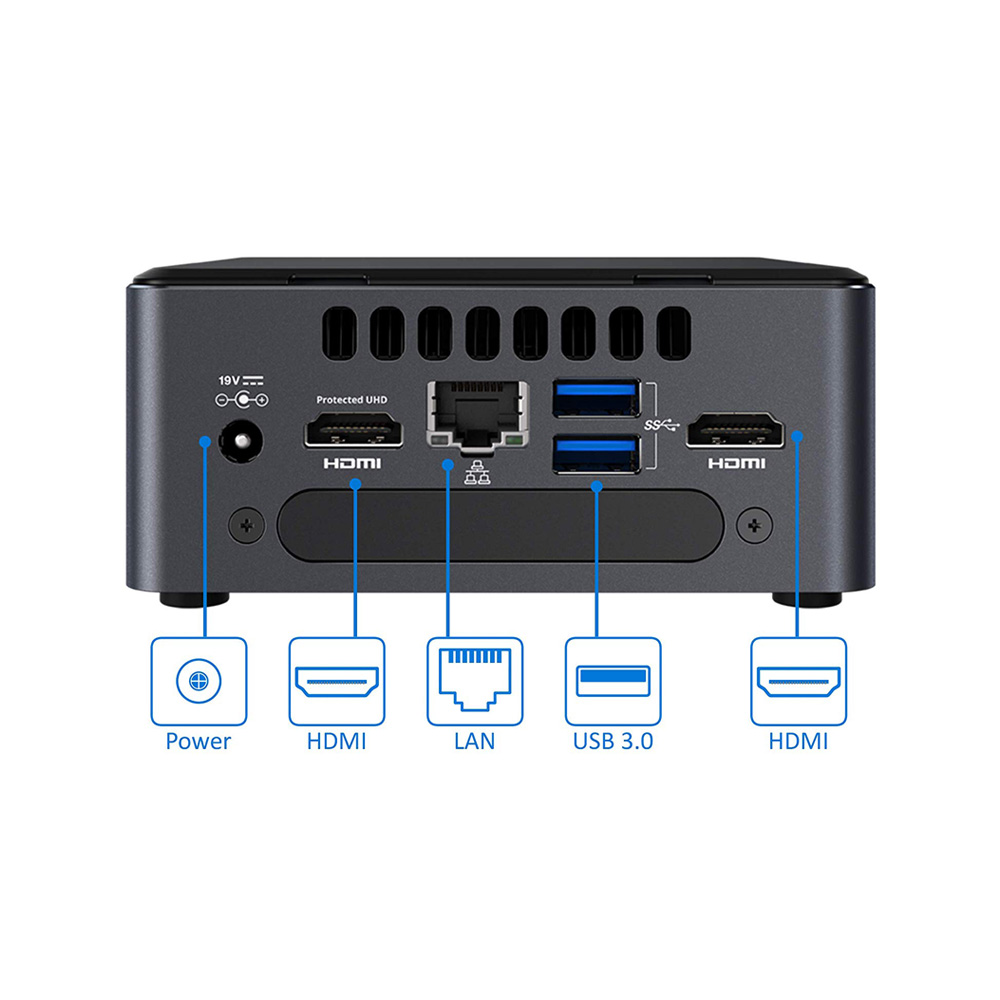

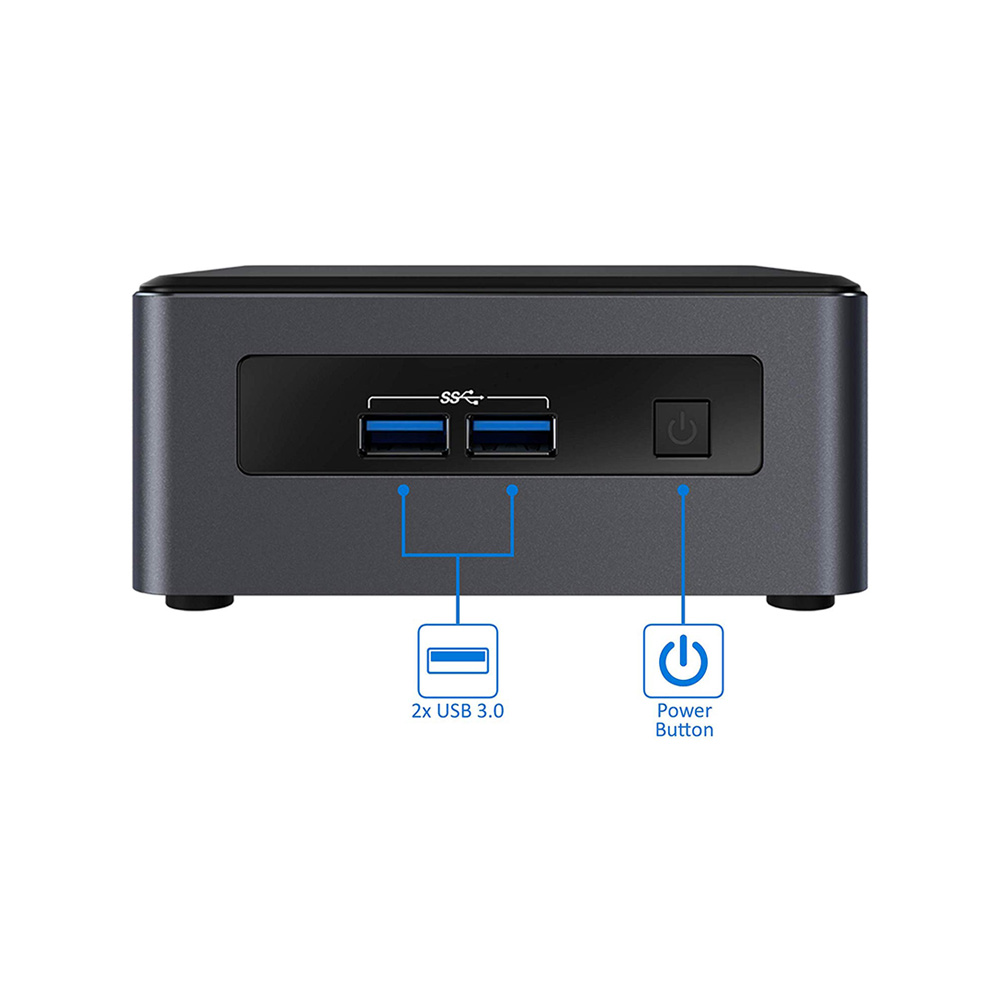

- Interfaces: 4 x USB 3.0 (2 front, 2 rear) ¦ 2 x HDMI ¦ 1 x LAN (Gigabit Ethernet) – RJ-45 ¦ 1 x LAN (Gigabit Ethernet) – RJ-45 ¦ 2 x SATA-600 ¦ DisplayPort
Compliant Standards
- Compliant Standards: CISPR 24, EN55022, ICES-003, EN55024, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, FCC CFR47 Part 15 B, Directive 2004/108/EC, Directive 2006/95/EC, KN24, CNS 13438, KN35, EN 62368-1, CISPR 32, EN 55032, CSA 60950-1
Power
- Device Type: Power adapter
- Power Provided: 65 Watt
Manufacturer Warranty
- Service & Support: Limited warranty – 1 year CD ROM Inc.
- Service & Support: Limited warranty – 3 year Intel on main NUC
Dimensions and Weight
- 4.5” x 2.0’ x 4.4”
- 2.6 pounds
